Mallorcatelecom we are experts in video surveillance system installations. We offer
solutions for any type of business and area to monitor such as industrial warehouses or large
surfaces, shops, parking, buildings, neighborhood communities and residencial homes.
We are a company registered in the Ministry of Industry. we register the file required by the
Spanish data protection agency (AEPD), an we also ensure to meet all requirements demanded by
them(informative videosuveillance sings, storage and manipulation of images, etc.).
We do not charge any maintenance or deceitful monthly fees. Simply the installation with
its corresponding legal guarantee.
Fill out our form for more information and prices.
Video surveillance
VIDEO SURVEILLANCE CAMERA TYPES
We could classify video surveillance systems according to the type of image transmission in analog or digital (IP) The analog systems were the first to be used and are still used due to their low cost. The different formats in which the output of television signals is analog and TV lines(TVL) are used to refer to the image resolution.. The image resolution depends mainly on the image sensor with which it is equipped, either CCD / CMOS. Analog cameras can offer standard resolution video with 1000 TVL, 700TVL, 650TVL, 480, 420TVL TV line. The higher the number of lines, the higher the Resolution will be. Analog cameras are associated with a video recorder (DVR: Digital Video Recorder) to record and store these images. Digital cameras are an increasingly alternative on videosurveillance systems, giving a Digital Video output, and using the number of pixels to refer to image resolution. There are cameras of 0.3 megapixels, 1 megapixel, 1.3 megapixels, 2 megapixels, 3MP, 5MP, 8MP resolution. A larger number of pixels means better image quality and higher resolution. The resolution is the number of pixels that make up the screen, and is specified by the number of pixels on the horizontal axis mal the vertical, for example, 1024 × 768. With more resolution (more expensive the camera is), we obtain better defined graphics and letters, occupying more information on the screen at the same time. Currently, due to the small price difference between analog and digital systems, we recommend investing in digital. Even so, if you have an old analog system and want to take advantage of its installation, Mallorcatelecom offers a study without commitment for a valuation of the system to be replace
4 OUTDOOR 2MPIXEL IP cameras 30 frames per second
-2.8mm lens
- 30 meters IR (Infrared for night vision)
- Free app for IOS and ANDROID
-Weatherproof IP67 housing
-Supports POE to feed directly from video recorder
1 DVR VIDEO RECORDER
(4 IP cameras can be connected)
- Supports live viewing, storage and playback of cameras (up to 6 MP resolution)
- Simultaneous HDMI and VGA outputs (up to a resolution of 1920 × 1080)
- 1 SATA hard drive (up to 6TB capacity)
- 10M / 100M auto-adaptable Network Interface
- 4 independent PoE ports
- Cloud P2P and DDNS (Dynamic Domain Name System) for easy network management and remote access.
- 2 Tbyte Hard disk
-APP mobile for visualization in IOS or ANDROID
499 + VAT
NOTE: The following offer DOES NOT include installation (€ 25 / hour), displacement and wiring (€ 0.60 / meter
exterior cat5e). Offer only valid for installations in Mallorca.-
OFERTA ESPECIAL MALLORCA TELECOM- KIT DE VIDEOVIGILANCIA IP
We work with the best brands:
OTHER SURVEILLANCE CAMERA SERVICES OFFERED

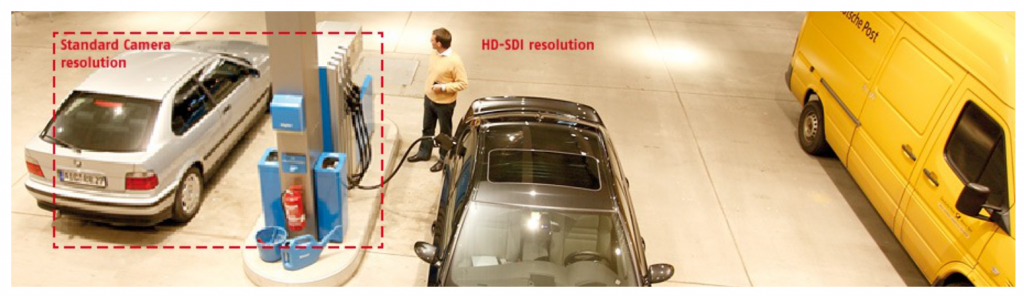

HD-SDI (High Definition Serial Digital Interface)It is a high capacity professional interface (used in television stations) that is used to send uncompressed digital video, in real time and using coaxial cable.- It is an analog system with high resolutionThis system is usually used in airports, ports, banks, casinos and shopping centers where a high resolution of image, security and real time visualization is required. Its also very popular in the banking sector.
It is also applied for installations of analog systems that want to improve the resolution and image quality without having to change all the existing coaxial and electrical wiring.
Mallorcatelecom offers its clients a study in case they want to adapt their old analog system to a high resolution one with lower investment costs than installing a new digital system

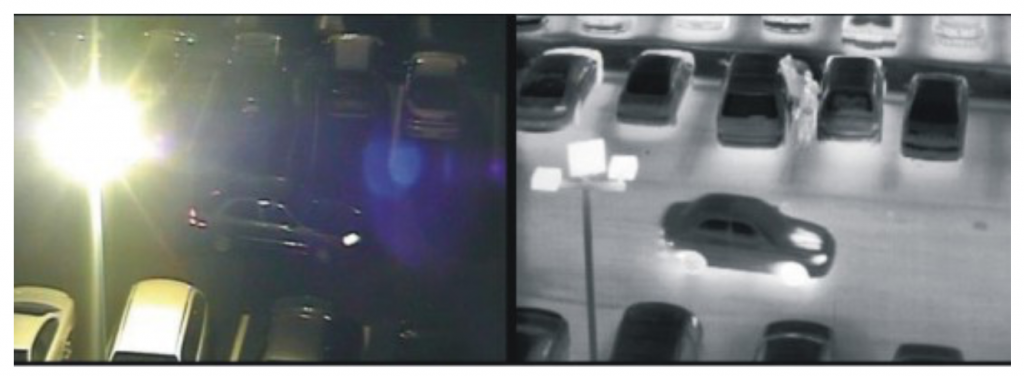

Thermal cameras, through special sensors, allow the detection and visualization of the temperature of the bodies. These characteristics allow to detect presence in conditions of very low or no optical visibility (fog, pollution, smoke, snow, etc). They even detect people or objects in total darkness.
No other technology allows detecting long-distance intruders (including kilometers) so effectively and discreetly in extreme environments
In recent years, thermal cameras are used more frequently in security installations, especially in perimeter protection systems, surveillance of large areas and solutions with video analysis.
To assess the range and choice of a thermal camera, different aspects must be taken into account, such as the type of camera used, the optics, the nature and size of the object to be detected and the atmospheric conditions.
For more information, do not hesitate to send us a contact form

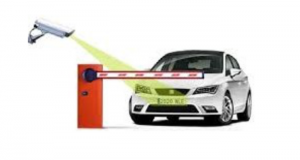

The license plate capture systems are used for parking management or exit and entry control of vehicles in restricted areas, vehicle gauging, toll control, gas stations, Trucks control in weighing scales, vehicle registration in ITV’s, etc. .-
They also help us to have a control and registration that allows us to associate the images of the license plates to the recording of an event
Operation of license plate capture cameras
License plate capture systems are integrated into specific cameras that have OCR (optical character recognition). The cameras visualize and detect the license plate, which are stored in a NVR video recorder. NVR allows us to manage the stored license plates.
A study of the area to be recorded and the characteristics of the site is necessary.
Some characteristics of license plate capture cameras
-Establish white and black lists:
Generate notification to control center; activate or deactivate the output relay of the camera itself; or send the image of the license plate by file when a vehicle is detected from the list
-Parking managment
They facilitate access, control, payment, entry and exit of vehicles
-Access control
Open barrier only to authorized vehicles and visitor`s vehicules registration
-Generate database of recordings
Through recordings we can download the list of license plates, export and search by registration of associated events, etc.
